Тиражрование на ризографе RISO RZ370
Технические характеристики ризографов, выпускаемых японской фирмой RISO, соответствуют современным требованиям оперативной полиграфии. Ризографы RISO надежны и удобны в эксплуатации. Нам нравится печатать на RISO, и мы надеемся, что результат этой работы понравится Вам.
Для сравнения приведены технические характеристики ризографов:
![Тиражирование на ризографе Тиражирование на ризографе](/img/rz3_3700.jpg)
RZ370 |
|
Top-quality D600dpi
printing
![](/img/fifa.gif)
Advanced RISO technology brings unprecedented print quality
to a truly affordable printer. Thanks to D600dpi resolution, lines are smoother,
photos and gradations are more natural, and even the smallest typeface is clear
and legible. And thats just part of the story, because the RZ3 series are
packed with cutting-edge RISO features such as the RISO i Quality System to assure
you of the very best performance possible from your RISO printer, with real-time
adjustment of print parameters for optimum print quality, automatically. |
Front
operation |
Thoughtful
design makes loading masters and swapping print drums light and easy. The printers
front section opens wide and the master making unit pulls out like a drawer, allowing
easy placement of a fresh master roll. Print drums are 25% lighter than previous
models allowing anyone to quickly and easily load a print drum of a different
color. |
|
Book-top
scanning |
The flat bed scanner allows
you to quickly and conveniently scan and print from bound materials without breaking
them apart. Whats more, theres none of the jamming so common with
sheet feeder scanners when scanning originals with photos or illustrations pasted
on them. |
|
Environment-friendly
design |
|
![](/img/rz-illus.gif) |
Ink/master holder |
Ink cap holder |
Thoughtful design touches reduce the burden on the environment.
For example, plastic flanges on the master roll have been eliminated and replaced
with an integrated system that automatically holds the master in place to reduce
plastic waste. And a handy holder safely stores the ink bottle cap until the bottle
is empty and ready for recycling. In addition, a convenient ink/master holder
provides storage of ink and masters. |
|
No
master flanges |
To make loading master rolls even
easier, the previous design that required placement of flanges on the master roll
is replaced with an integrated system that automatically holds the master in place. |
|
Easy
ink setting |
Setting a new ink bottle
is little more than a one-click operation. Simply insert the bottle, twist into
place and close the printer door. Its all part of RISOs "clean
hands" operating policy. |
|

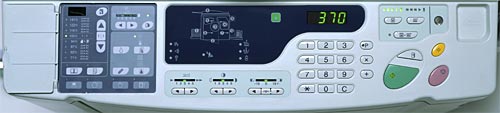

RZ
370 Operation Panel |
|
Progress
arrows |
These provide visual confirmation
of progress in master-making and print jobs so you always know where you are in
the process. |
|
Enlarging
and reducing the print area of masters |
Multi-step adjustment allows
you to enlarge or reduce standard-size originals to another standard paper size.
You can also use it to adjust margins around your original. Zoom mode allows you
to enlarge or reduce your original from 50% to 200% in 1% increments for total
control or special effects. |
|
Scanning
level adjustment |
Five step scanning level
adjustment allows you to adjust the scanner to match the density of your original.
An auto position is also available. |
|
Energy
saving mode |
Lowers running costs by
automatically turning the printer off or placing it in sleep mode after a users-selected
period without operation. Choose from 5, 15, 30, 60 or 90-minute periods without
operation before the printer turns off or enters sleep mode. |
|
Link
print |
RISOs Link print feature
allows you to scan your original on the RZ3 series and send the scanned data to
a RISO laser printer, saving the cost of a master when the size of the print run
doesnt justify it. |
|
Fast
printing speed |
RISO printers are known
for their speed, and the RZ3 series get the job done even faster with a higher
maximum print speed of 130 pages per minute. |
|
Print
density adjustment |
Five-step print density
adjustment gives you fine control of output print density, assuring you of complete
control of the look of your printed documents. |
|
Vertical
print position adjustment |
This lets you shift the
vertical position of the print area by ±15mm allowing precise placement
of print/images on the output. |
|
RZ390 |
Master-Making/
Printing Methods |
High-Speed Digital Master-Making /Full
Automatic Stencil Printing |
Original
Type |
Book, Sheet |
Original
Size (Max./Min.) |
When Using the Stage Glass : 115⁄16"
x 39⁄16" - 1111⁄16" x 17" |
When Using the ADF Unit (Option) : 39⁄16"
x 51⁄2" - 1111⁄16"
x 17" |
Original
Paper Weight |
When Using the Stage Glass : 22lb or Less |
When Using the ADF Unit (Option) : 15-lb
bond - 28-lb bond |
Print Paper
Size (Max./Min.) |
315⁄16"
x 513⁄16" - 1111⁄16"
x 17" |
Paper Supply
Capacity |
1000 Sheets (17-lb bond) |
Print Paper
Weight |
13-lb bond - 110-lb index |
Image Processing
Mode |
Line, Photo, Duo, Pencil |
Resolution |
D600dpi |
Master
Making Time |
Approx. 16 Seconds (for A4/Landscape/100%
Reproduction Ratio) |
Printing
Area (Max.) |
115⁄16"
x 163⁄4" |
Print Reproduction
Ratio |
Zoom : 50 - 200%
Standard Reproduction Ratio (Enlargement) : 154%, 129%, 121%
Standard Reproduction Ratio (Reduction) : 94%, 78%, 65%, 61% |
Print Speed |
Approx. 60 - 130 Pages per Minute (Five
Steps Variable) |
Print Position
Adjustment |
Vertical : ±1⁄2"
Horizontal : ±3⁄8"
|
Ink Supply |
Full Automatic (1000 ml per Cartridge) |
Master
Supply /Disposal |
Full Automatic (Approx. 215 Sheets per
Roll) |
Master
Disposal Capacity |
100 Sheets |
User Interface |
LED Panel with Progress Arrow Indicators,
Front-Side Operation |
Power Source |
110-120V AC, 50/60Hz <2.5A> |
Dimensions
without Stand |
When in Use : 545⁄16"(W)
x 253⁄8"(D) x
26"(H) |
When in Storage : 301⁄2"(W)
x 253⁄8"(D) x
26"(H) |
Weight
without Stand |
Approx. 220lb |
|
RZ370 |
Master-Making/
Printing Methods |
High-Speed Digital Master-Making /Full
Automatic Stencil Printing |
Original
Type |
Book, Sheet |
Original
Size (Max./Min.) |
When Using the Stage Glass : 50mm x 90mm
- 297mm x 432mm |
When Using the ADF Unit (Option) : 90mm
x 140mm - 297mm x 432mm |
Original
Paper Weight |
When Using the Stage Glass : 10kg or Less |
When Using the ADF Unit (Option) : 50g/m2
- 110g/m2 |
Print Paper
Size (Max./Min.) |
100mm x 148mm - 297mm x 432mm |
Paper Supply
Capacity |
1000 Sheets (64g/m2) |
Print Paper
Weight |
46g/m2
- 210g/m2 |
Image Processing
Mode |
Line, Photo, Duo, Pencil |
Resolution |
D600dpi |
Master
Making Time |
Approx. 16 seconds (for A4 /Landscape
/100% Reproduction Ratio) |
Printing
Area (Max.) |
291mm x 413mm |
Print Reproduction
Ratio |
Zoom : 50 - 200%
Standard Reproduction Ratio (Enlargement) : 141%, 122%, 116%
Standard Reproduction Ratio (Reduction) : 94%, 87%, 82%, 71% |
Print Speed |
Approx. 60 - 130 Pages per Minute (Five
Steps Variable) |
Print Position
Adjustment |
Vertical : ±15mm Horizontal : ±10mm |
Ink Supply |
Full Automatic (1000 ml per Cartridge) |
Master
Supply /Disposal |
Full Automatic (Approx. 220 Sheets per
Roll) |
Master
Disposal Capacity |
100 Sheets |
User Interface |
LED Panel with Progress Arrow Indicators,
Front-Side Operation |
Power Source |
100V-120V AC, 50/60Hz <2.5A>
220V-240V AC, 50/60Hz <1.3A> |
Dimensions
without Stand |
When in Use : 1380mm(W) x 645mm(D) x 660mm(H)
|
When in Storage : 775mm(W) x 645mm(D)
x 660mm(H) |
Weight
without Stand |
Approx. 100kg |
|
RZ310 |
Master-Making/
Printing Methods |
High-Speed Digital Master-Making /Full
Automatic Stencil Printing |
Original
Type |
Book, Sheet |
Original
Size (Max./Min.) |
When Using the Stage Glass : 115⁄16"
x 39⁄16" - 1111⁄16"
x 17" |
When Using the ADF Unit (Option)
: 39⁄16" x 51⁄2"
- 1111⁄16" x 17" |
Original
Paper Weight |
When Using the Stage Glass : 22lb or Less |
When Using the ADF Unit (Option) : 15-lb
bond - 28-lb bond |
Print Paper
Size (Max./Min.) |
315⁄16"
x 513⁄16"- 1111⁄16"
x 17" |
Paper Supply
Capacity |
1000 sheets (17-lb bond) |
Print Paper
Weight |
13-lb bond - 110-lb index |
Image Processing
Mode |
Line, Photo, Duo, Pencil |
Resolution |
D600dpi |
Master
Making Time |
Approx. 22 Seconds (for A4 /Portrait /100%
Reproduction Ratio) |
Printing
Area (Max.) |
81⁄4"
x 117⁄16" |
Print Reproduction
Ratio |
Zoom : 50 - 200%
Standard Reproduction Ratio (Enlargement) : 154%, 129%, 121%
Standard Reproduction Ratio (Reduction) : 94%, 78%, 65%, 61% |
Print Speed |
Approx. 60 - 130 Pages per Minute (Five
Steps Variable) |
Print Position
Adjustment |
Vertical : ±1⁄2"
Horizontal : ±3⁄8" |
Ink Supply |
Full Automatic (1000 ml per Cartridge) |
Master
Supply /Disposal |
Full Automatic (Approx. 295 Sheets per
Roll) |
Master
Disposal Capacity |
100 Sheets |
User Interface |
LED Panel with Progress Arrow Indicators,
Front-Side Operation |
Power Source |
100V-120V AC, 50/60Hz <2.5A> |
Dimensions
without Stand |
When in Use : 545⁄16"(W)
x 253⁄8"(D) x
26"(H) |
When in Storage : 301⁄2"(W)
x 253⁄8"(D) x 26"(H) |
Weight
without Stand |
Approx. 220lb |
|
RZ300 |
Master-Making/
Printing Methods |
High-Speed Digital Master-Making /Full
Automatic Stencil Printing |
Original
Type |
Book, Sheet |
Original
Size (Max./Min.) |
When Using the Stage Glass : 50mm x 90mm
- 297mm x 432mm |
When Using the ADF Unit (Option)
: 90mm x 140mm - 297mm x 432mm |
Original
Paper Weight |
When Using the Stage Glass : 10kg or Less |
When Using the ADF Unit (Option): 50g/m2
- 110g/m2 |
Print Paper
Size (Max./Min.) |
100mm x 148mm - 297mm x 432mm |
Paper Supply
Capacity |
1000 Sheets (64g/m2) |
Print Paper
Weight |
46g/m2
- 210g/m2 |
Image Processing
Mode |
Line, Photo, Duo, Pencil |
Resolution |
D600dpi |
Master
Making Time |
Approx. 22 Seconds (for A4/Portrait/100%
Reproduction Ratio) |
Printing
Area (Max.) |
210mm x 290mm |
Print Reproduction
Ratio |
Zoom : 50 - 200%
Standard Reproduction Ratio (Enlargement) : 141%, 122%, 116%
Standard Reproduction Ratio (Reduction) : 94%, 87%, 82%, 71% |
Print Speed |
Approx. 60 - 130 Pages per Minute (Five
Steps Variable) |
Print Position
Adjustment |
Vertical : ±15mm Horizontal : ±10mm |
Ink Supply |
Full Automatic (1000 ml per Cartridge) |
Master
Supply /Disposal |
Full Automatic (Approx. 295 Sheets per
Roll) |
Master
Disposal Capacity |
100 Sheets |
User Interface |
LED Panel with Progress Arrow Indicators,
Front-Side Operation |
Power Source |
220V-240V AC, 50/60Hz <1.3A> |
Dimensions
without Stand |
When in Use : 1380mm(W) x 645mm(D) x 660mm(H)
|
When in Storage : 775mm(W) x 645mm(D)
x 660mm(H) |
Weight
without Stand |
Approx. 100kg |
